Features

  • New MEMS technology
  • Long tip increases spectral range
  • Highly profiled tip with angle engineering
  • Precise tip visibility enables accurate landing on sample
  • Vertical sidewall chip for safe handling

Applications

  • Enhanced s-SNOM spectroscopy in the mid-infrared region
  • s-SNOM imaging in the mid-infrared region
  • Soft probe, optimal for combined s-SNOM and KPFM imaging
PackagingPrice & quantity
Metal Box of 10 AFM Probes
 950,00 €
→ You can generate a quote directly from the cart page
Order code : NF003_A2-A2-30

Specifications

Parameter
Unit
Nominal
Range
Frequency
kHz
90
50-150
Spring constant
N/m
3
1-8
Tip height Ht
µm
30
15-50
Tip apex radius
nm
75
55-90
Tip side angle θ
°
75
+/- 0.5
Tip-cantilever angle α
°
75
+/- 0.5
Cantilever length Lc
µm
115
+/- 1
Cantilever Width Wc
µm
40
+/- 1
Cantilever Thickness Tc
µm
1.4
+/- 0.5
Cantilever backside coating
Thick gold
Tip side coating
Uncoated
Tip and cantilever material
p-doped Silicon 0.01-0.02 ohm-cm
Chip dimensions
mm
3.4x1.6x0.4

Cantilever & tip details

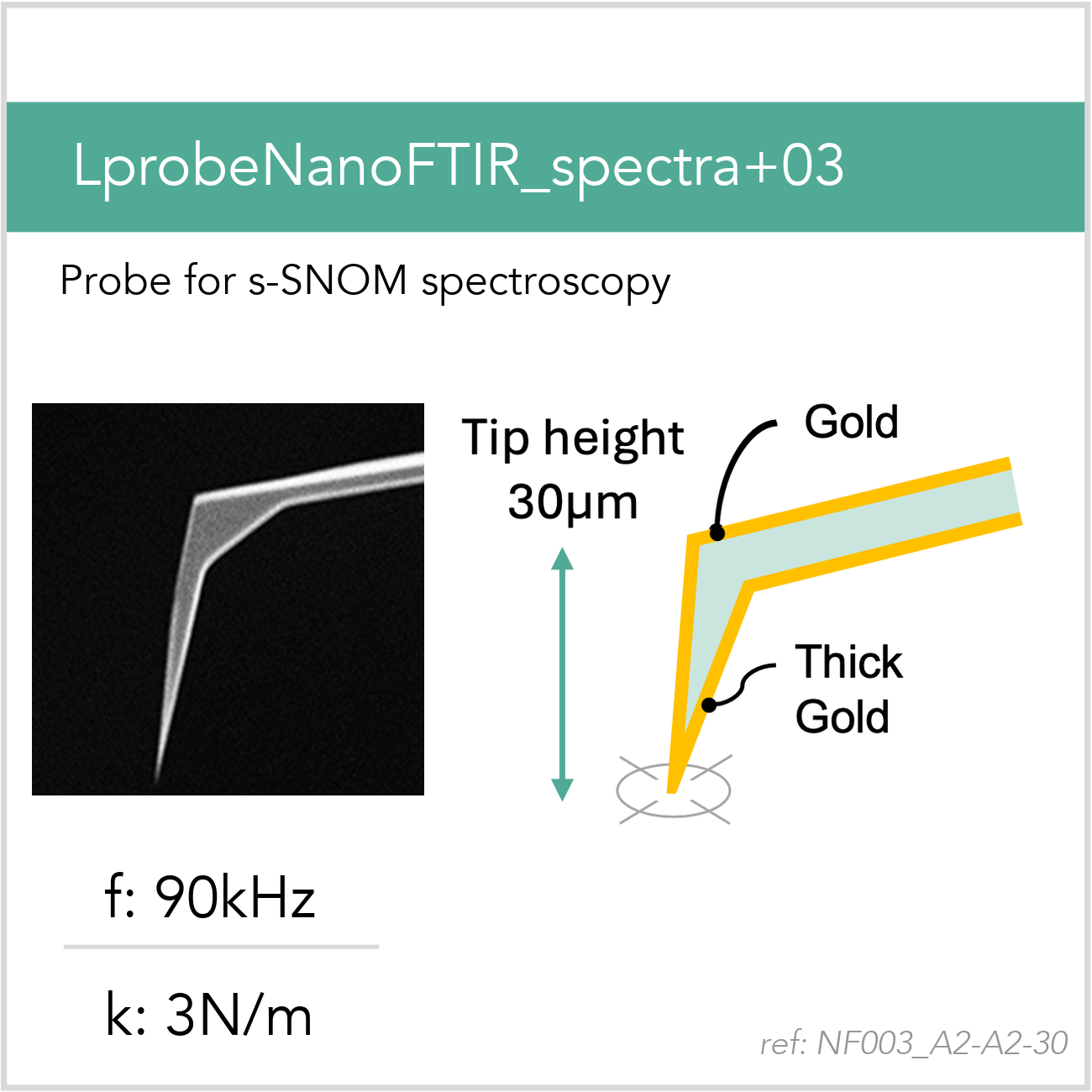

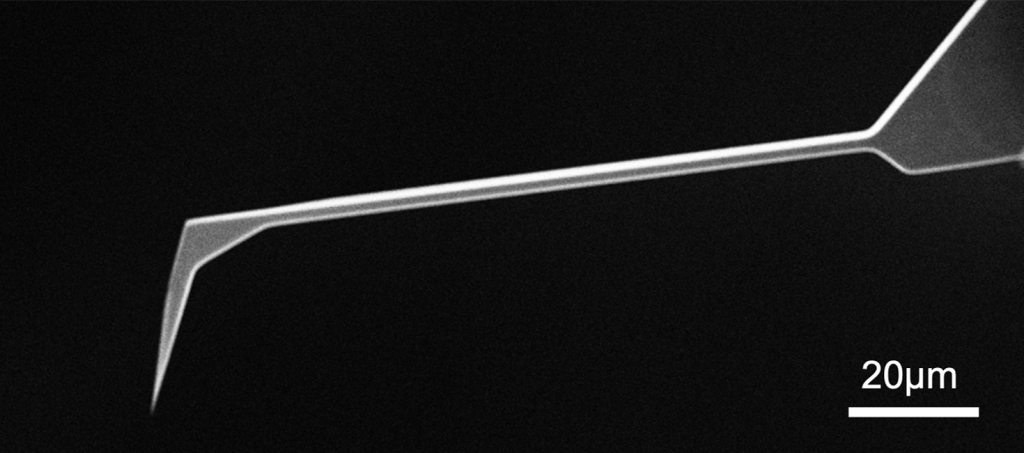

LprobeNanoFTIR_spectra+03_A2-A2-30
  • Tilted tip design
    Compensates for the AFM head’s mounting angle, ensuring accurate data on diverse sample surfaces.
  • Tip height >30 µm
    Optimal optical access for s-SNOM mode
  • Half-cone angle < 10° over the last 10 µm
    Minimizes tip-sample convolution, ensuring more accurate morphological measurements.
  • Coating for spectroscopy
    Thick gold layer all faces of the tip, typical apex radius is 75nm. The coating is optimized for s-SNOM spectroscopy.



Special packaging

Spectroscopy and images with SNOM tips that have been packaged in standard AFM Gel-Pak boxes can lead to artifacts in the optical response. This is due to contamination of the tip by a few molecules of the gel. Vmicro has developed a back-end process with special decontamination and storage in a metal box. You can select this feature as an option when selecting your reference.


Nano-FTIR spectra normalized and obtained at the SMIS beamline at Synchrotron SOLEIL. (Courtesy F. Borondics – G. Németh)
