Features

  • Long tip suited to cell imaging
  • New MEMS technology unlocking probe engineering
    • Cone angle and tip-cantilever angle unlocked and chosen by design
    • Symmetrical tip in 11° probe holders
  • Negligible squeeze film damping in water: No frequency and Q reduction close to surface

Applications

  • Imaging of cells, bacteria, and tissues in liquid or air
  • PeakForce TappingTM mode
  • ScanAsystTM mode
  • High-resolution imaging of polymers and composite materials
PackagingPrice & quantity
Box of 10 AFM Probes
 280,00 €
Box of 20 AFM Probes

Volume discount: 11%

 500,00 €
Box of 50 AFM Probes

Volume discount: 18%

 1150,00 €
→ You can generate a quote directly from the cart page
Order code : LS0P5_Au-Si-30

Specifications

Parameter
Unit
Nominal
Range
Frequency
kHz
80
45-100
Spring constant
N/m
0.5
0.1-1
Tip height Ht
µm
30
15-50
Tip apex radius
nm
7
2-10
Tip side angle θ
°
7
+/- 0.5
Tip-cantilever angle α
°
7
+/- 0.5
Cantilever length Lc
µm
80
+/- 1
Cantilever Width Wc
µm
20
+/- 1
Cantilever Thickness Tc
µm
0.65
+/- 0.5
Cantilever backside coating
Gold
Tip side coating
Uncoated
Tip and cantilever material
p-doped Silicon 0.01-0.02 ohm-cm
Chip dimensions
mm
3.4x1.6x0.4

Cantilever & tip details

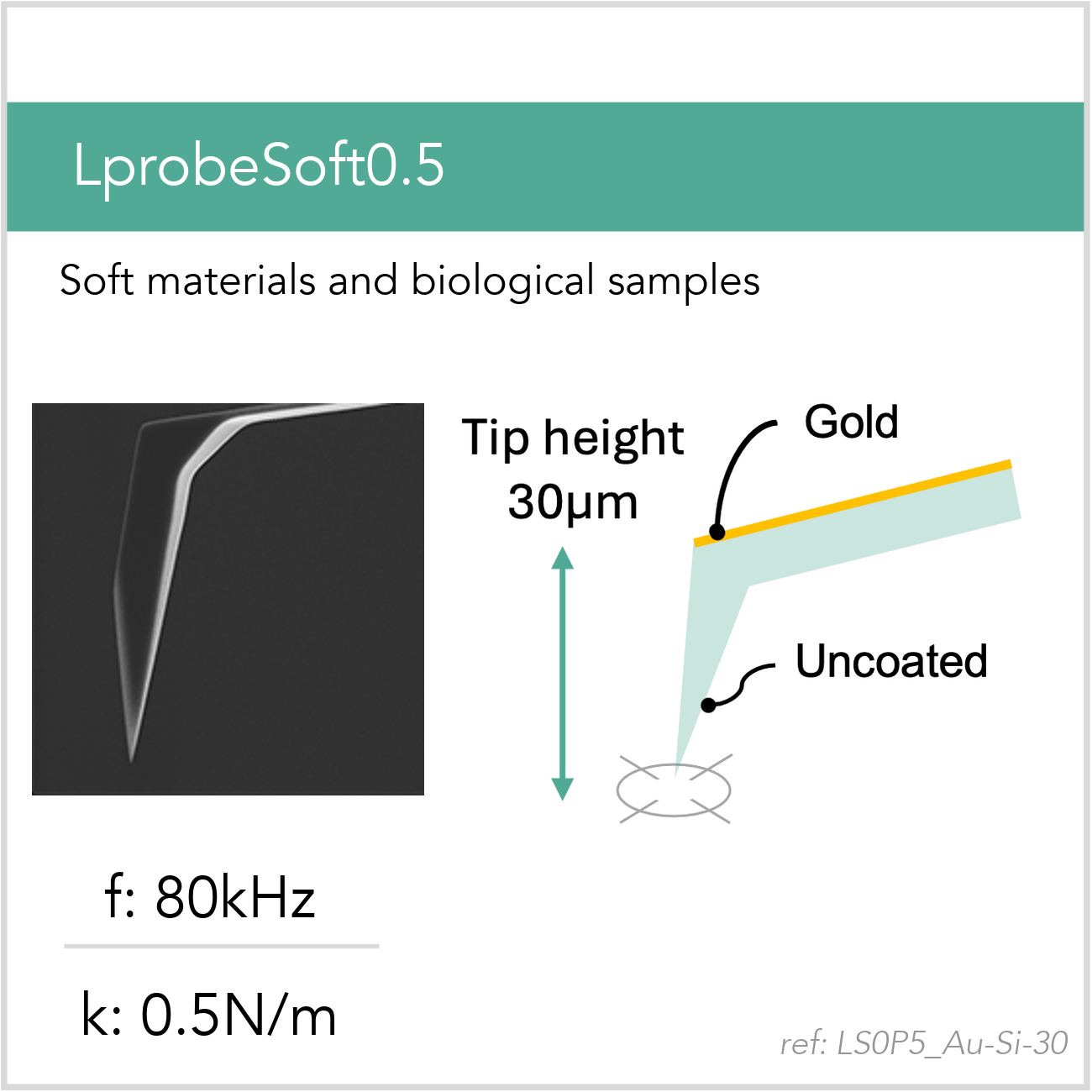

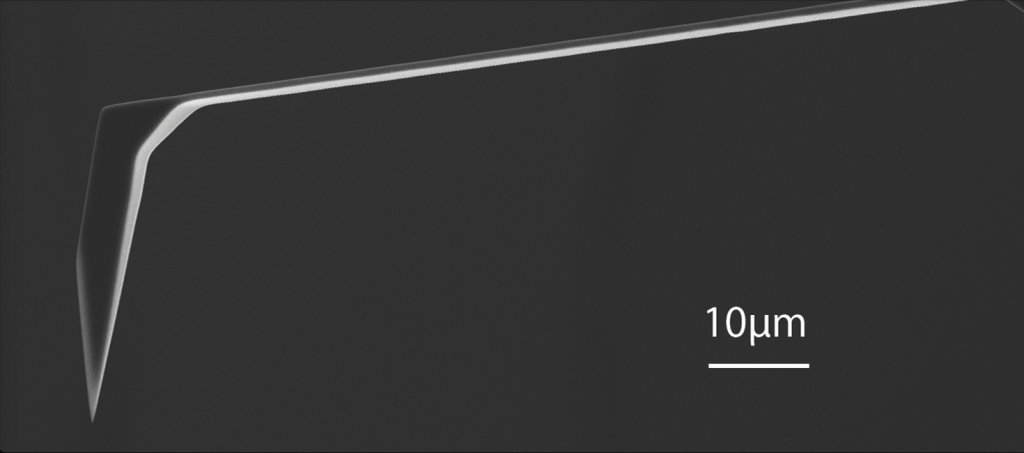

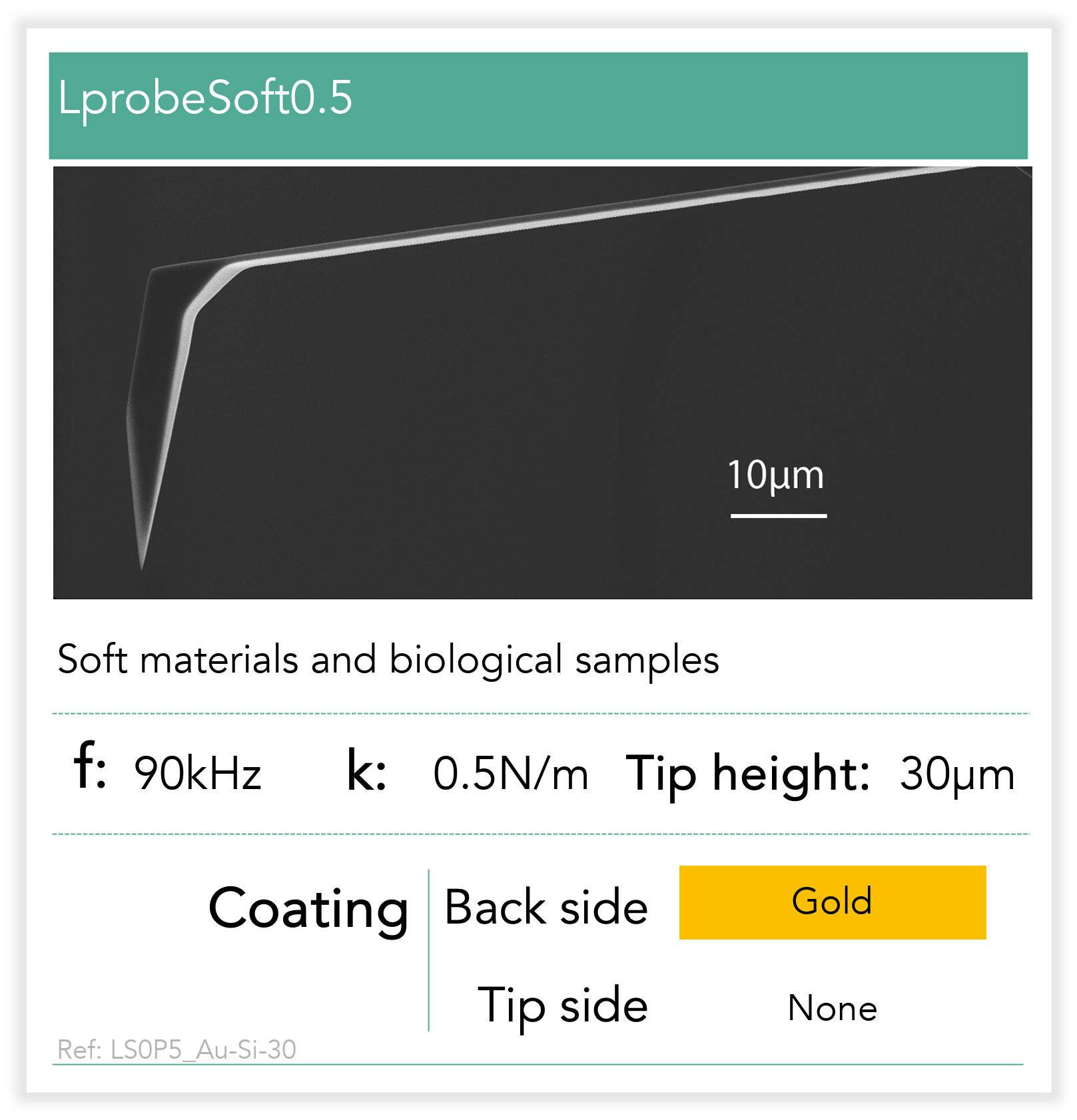

LprobeSoft0.5_Au-Si-30
  • Tilted tip design
    Compensates for the AFM head’s mounting angle, ensuring accurate data on diverse sample surfaces.
  • Tip height >30 µm
    Enables imaging of deeper or difficult-to-access sample regions.
  • Half-cone angle < 12° over the last 10 µm
    Minimizes tip-sample convolution, ensuring more accurate morphological measurements.
  • Guaranteed tip radius < 10 nm
    Provides reliable resolution for advanced AFM applications.

Special packaging

Spectroscopy and images with SNOM tips that have been packaged in standard AFM Gel-Pak boxes can lead to artifacts in the optical response. This is due to contamination of the tip by a few molecules of the gel. Vmicro has developed a back-end process with special decontamination and storage in a metal box. You can select this feature as an option when selecting your reference.


Nano-FTIR spectra normalized and obtained at the SMIS beamline at Synchrotron SOLEIL. (Courtesy F. Borondics – G. Németh)
